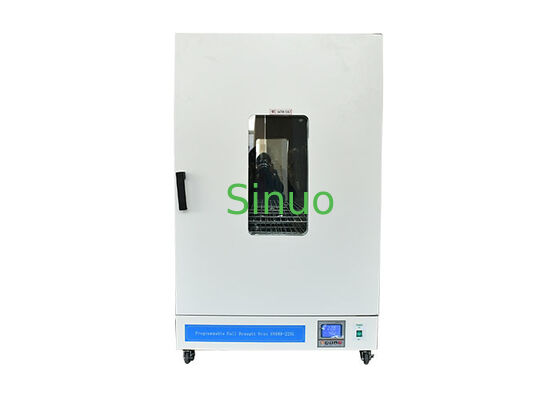

Name: IEC 62133-1 Battery Thermal Impact Test Chamber 200℃ Thermal Abuse Test Equipment
Brand: Sinuo Testing Equipment Co. , Limited
SKU: SN556-408L
Availability: InStock

Cuota De Producción:	1
Precio:	Customized
Embalaje Estándar:	caja de madera contrachapada
Período De Entrega:	30 dias
Forma De Pago:	T/T
Capacidad De Suministro:	20 juegos por mes

Información detallada

Descripción del producto

Información detallada

Lugar de origen

Porcelana

Nombre de la marca

Sinuo

Certificación

Calibration Certificate (Cost Additional)

Número de modelo

SN556-408L

Rango de temperatura:

Temperatura ambiente ~ 200 ℃

Precisión del control de temperatura:

±0,5 ℃

Uniformidad de temperatura:

±2,0 ℃ (sin carga)

Tasa de calefacción:

5 ℃ ± 2 ℃/min (RT ~ 150 ℃)

Método de control:

Control de pantalla táctil PLC

Tamaño de la cámara de trabajo:

Ancho 800 × Alto 850 × Fondo 600 mm

Material aislante:

Lana de vidrio de alta densidad

Sistema de circulación del aire:

Circulación de aire plano forzada

Descripción del producto

IEC 62133-1 Battery Thermal Impact Test Chamber 200℃ Thermal Abuse Test Equipment

Professional battery thermal abuse testing equipment designed for comprehensive battery safety evaluation under thermal stress conditions.

Product Overview

The Battery Thermal Impact Test Chamber is designed for battery thermal abuse and thermal impact testing in compliance with international battery safety standards including IEC62133-1:2017, IEC62133-2:2017, and IEC60086-4:2019.

This professional testing equipment simulates high-temperature environmental conditions by placing batteries inside a forced hot air circulation chamber. The system heats the battery to a preset temperature at a controlled heating rate and maintains stable thermal conditions for specified durations, enabling manufacturers to evaluate battery safety performance under thermal stress.

Widely used in lithium battery laboratories, EV battery testing centers, consumer electronics manufacturing, energy storage system testing, and certification laboratories.

Compliance Standards

IEC62133-1:2017 Clause 7.3.5
IEC62133-2:2017 Clause 7.3.4
IEC60086-4:2019 Clause 6.5.7

Main Features

High-precision PID temperature control system
Forced hot air circulation for excellent temperature uniformity
PLC touch screen intelligent control interface
SUS304 stainless steel inner chamber with corrosion resistance
SECC powder-coated steel exterior structure
Fast temperature recovery after door opening
High-temperature resistant long-axis motor and turbo blower
Multiple safety protections including over-temperature and overload protection
Optional tempered glass observation window with bursting disk
Stable heating performance for lithium battery safety testing
Custom chamber dimensions available upon request

IEC 62133-1 Battery Thermal Impact Test Chamber 200℃ Thermal Abuse Test Equipment 0

Technical Parameters

Item	Specification
Product Name	Battery Thermal Impact Test Chamber
Temperature Range	Ambient Temperature ~ 200℃
Temperature Control Accuracy	±0.5℃
Temperature Uniformity	±2.0℃ (No Load)
Heating Rate	5℃±2℃/min (RT~150℃)
Control Method	PLC Touch Screen Control
Working Chamber Size	W800 × H850 × D600 mm
External Dimensions	W1140 × D1130 × H1620 mm
Inner Chamber Material	SUS304 Mirror Stainless Steel
Outer Chamber Material	SECC Steel Plate with Powder Coating
Insulation Material	High Density Glass Wool
Observation Window	Tempered Glass with Bursting Disk
Mobility	Universal Wheels Installed
Power Supply	AC 220V ±10%, 50Hz
Heating Power	Approx. 5KW
Air Circulation System	Forced Flat Air Circulation
Heating System	PID + SSR
Motor	High Temperature Resistant Long Axis Motor
Blower Type	Multi-Impeller Turbo Fan

Advanced Air Supply Circulation System

Efficient Forced Air Circulation Design

The chamber adopts a high-efficiency forced air conveying circulation system. The circulation motor drives the turbo fan to continuously circulate hot air through the heating system and chamber interior, ensuring:

Uniform temperature distribution
Reduced energy consumption
Stable thermal testing conditions
Rapid temperature recovery after door operation

High Performance Components

1HP high-temperature resistant long-axis motor
Multi-impeller turbo blower with adjustable airflow plate
Optimized internal air duct structure for smooth airflow circulation

IEC 62133-1 Battery Thermal Impact Test Chamber 200℃ Thermal Abuse Test Equipment 1

Frequently Asked Questions

Q1: What standards does this battery thermal impact tester comply with?

A: The equipment complies with IEC62133-1:2017, IEC62133-2:2017, IEC60086-4:2019, and related battery safety testing standards.

Q2: What types of batteries can be tested?

A: The chamber is suitable for lithium-ion batteries, lithium polymer batteries, nickel batteries, EV battery modules, and energy storage batteries.

Q3: What is the maximum testing temperature?

A: The chamber can reach up to 200℃ with precise temperature control.

Q4: Can the chamber size be customized?

A: Yes, customized chamber dimensions and configurations are available based on customer testing requirements.

Q5: Does the equipment include safety protection features?

A: Yes, the tester includes over-temperature protection, overload protection, automatic power cut-off, and optional explosion-proof observation window configurations.

Q6: Is the temperature evenly distributed inside the chamber?

A: Yes, the forced air circulation system ensures excellent temperature uniformity throughout the working chamber.
