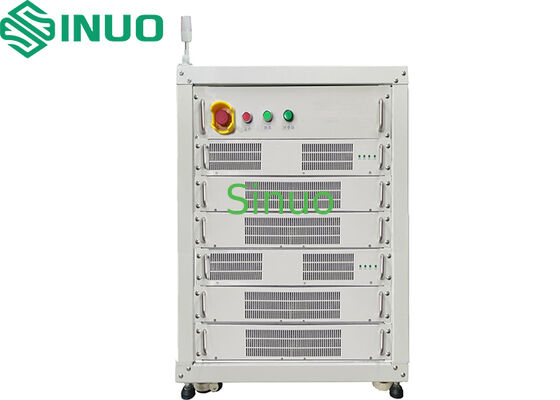

Name: Multi-Channel Regenerative High-Precision Battery Pack Testing Equipment
Brand: Sinuo Testing Equipment Co. , Limited
SKU: SN552CTS-100V200A
Availability: InStock

Cuota De Producción:	1
Precio:	Negociable
Embalaje Estándar:	Paquete de exportación
Período De Entrega:	30 dias
Forma De Pago:	T/T
Capacidad De Suministro:	5 juegos por mes

Información detallada

Descripción del producto

Información detallada

Lugar de origen

Porcelana

Nombre de la marca

Sinuo

Certificación

Calibration Certificate (Cost Additional)

Número de modelo

SN552CTS-100V200A

Canales principales:

6 canales

Modos de funcionamiento:

Cargando, descargando, en espera, parada

Gama de la tensión de carga:

0V-100V

Rango de tensión de descarga:

15V-100V

Precisión del voltaje del canal:

±（0.05%RD+0.05%FS）

Resolución de voltaje del canal:

0.1mV

Resaltar:

multi-channel battery testing equipment

high-precision battery pack tester

regenerative battery testing equipment

Descripción del producto

Multi-Channel Regenerative High-Precision Battery Pack Testing Equipment

This advanced regenerative battery pack testing equipment performs comprehensive testing on lithium-ion batteries, including capacity, state of charge, overcharge, and over-discharge assessments. The system features high power, efficiency, precision, and performance with regenerative energy feedback technology that minimizes heat emission, energy consumption, and operating costs.

System Architecture

The equipment consists of host computer, middle computer, DC/AC modules, DC/DC modules, lower computer, and data acquisition system. It collects real-time voltage, current, capacity, and energy data for individual cells, with optional battery temperature monitoring. Data is stored in a specialized database with comprehensive statistics, analysis, and reporting capabilities.

Main Functions

Battery cycle life testing
Battery capacity testing
DC internal resistance testing (optional)
Charge/discharge characteristic testing
Charge retention testing
Charge/discharge efficiency testing
Deep discharge / constant voltage discharge testing
Overcharge and over-discharge tolerance testing
Temperature characteristic testing
Battery dynamic and operating condition tests (optional)

Key Features

Regenerative energy feedback technology for high efficiency and minimal heat generation
Three-phase balance technology reducing grid load
Soft-start feature to minimize power grid impact
Precision exceeding 0.05% with 1000 ms data logging cycles
Independent channels with separate charge/discharge settings
Comprehensive protection features including reverse connection and power-off resume
No impact current at channel startup with seamless mode transitions
Multi-layer network integration supporting over 1000 channels
Customizable internal resistance testing for battery cell grouping
Modular design for easy maintenance and upgrades

Technical Parameters

Parameter	Specification
Model	SN552CTS-100V200A
Main Channels	6 channels (fully independent)
Voltage Range	Charging: 0V-100V, Discharging: 15V-100V
Current Range	±200A maximum, ±600mA minimum
Accuracy	±(0.05%RD+0.05%FS)
Power Output	20,000W per channel maximum
Efficiency	85% maximum charge and discharge efficiency
Communication	RJ-45 Ethernet interface
Cooling	Forced air cooling
Environmental	-20℃ to 40℃, 10%-90% RH non-condensing

Equipment Advantages

High energy feedback efficiency up to 85%
High output precision with minimal current drift
Comprehensive safety protection features
Battery reverse connection protection
Smooth transitions between constant current and voltage modes
Soft-start function preventing current spikes
High precision DC internal resistance testing

Component List

Component	Manufacturer	Origin
MCU	ST / TI	Italy / France / USA
Fan	Delta / Chint	China
Fuse	Littlefuse / Bussmann	USA
Sampling Resistor	ISABELLENHÜTTE	Germany
Relay	OMRON	Japan

Safety Notes

Ensure proper equipment grounding, maintain clear workspace, do not open internal panels during operation, verify test channels are idle before battery connection/removal, and use emergency stop switch in case of emergencies.
